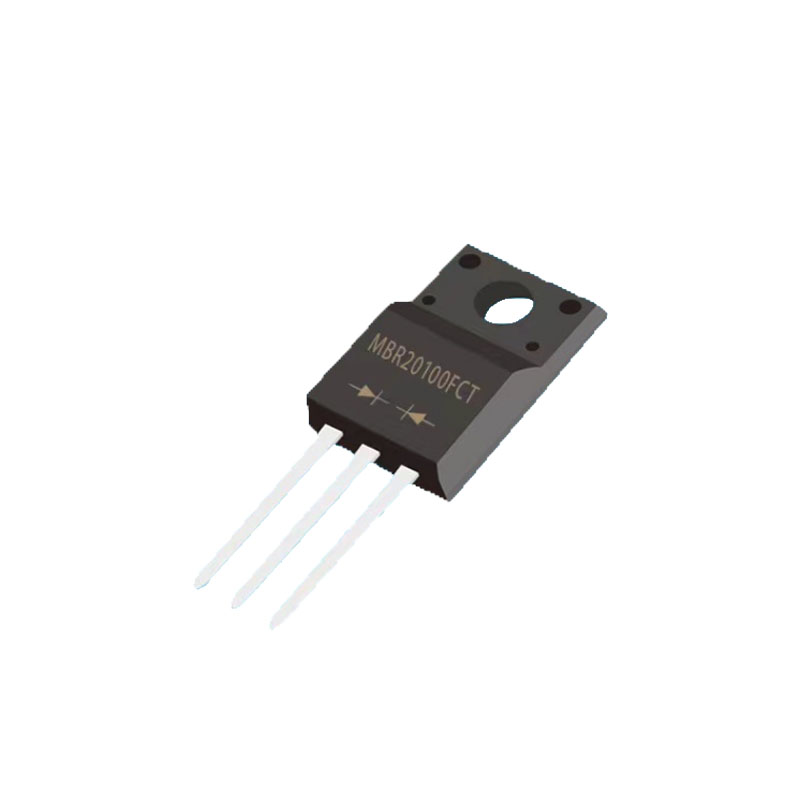

MBR20100FCT
产品详情
| Part Number 产品型号 | Package 封装 | Max.Reverse Voltage z大反向电压 | Max.Aver.Rect.Current z大平均整流电流 | Peak Fwd.Surge Curre 正向浪涌电流 | Max.Fwd.Voltage @25℃&Rated lo 正向压降 | Maximum Reverse Current@Rated VRM&Tc z大反向漏电流 | Typical Thermal Resistance 典型热阻 | Typical Junction Capacit. 典型结电容 | Operating Temp.Range 工作温度范围 | ||
| VRM(V) | IO(A) | IFSM(A) | Rated lo(A) | VF(V) | IR@25℃(mA) | IR@100℃(mA) | (℃/W) | CJ(PF） | TJ(℃) | ||
| MBR20100FCT | ITO-220AB | 100 | 20 | 150 | 10 | 0.85 | 0.1 | 20 | 4 | 250 | -55～+150 |
