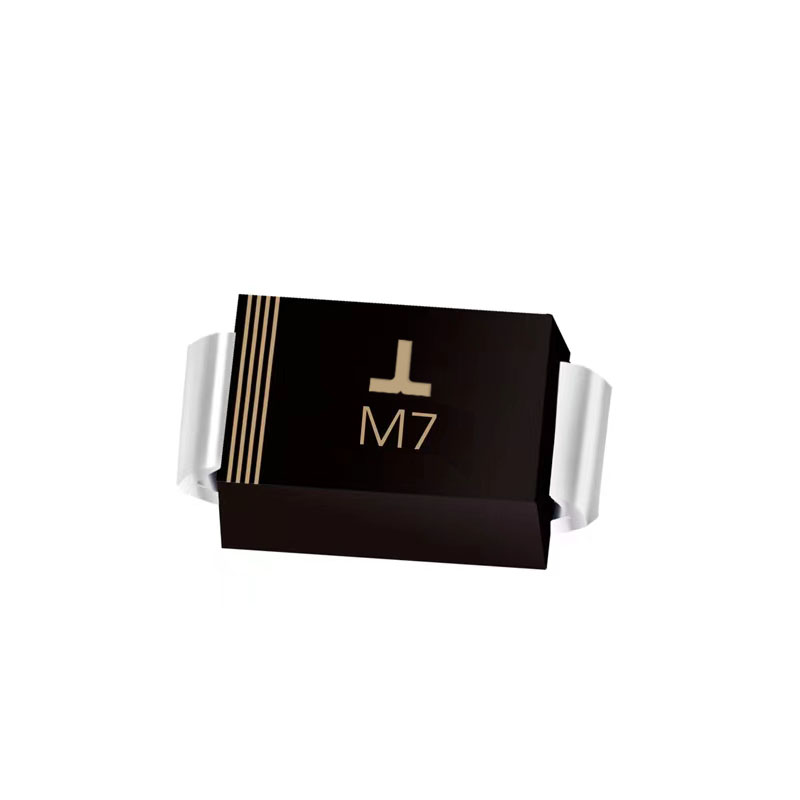

M7
产品详情
| Part Number 产品型号 | Package 封装 | Max.Reverse Voltage z大反向电压 | Max.Aver.Rect.Current z大平均整流电流 | Peak Fwd.Surge Curre 正向浪涌电流 | Max.Fwd.Voltage @25℃&Rated lo 正向压降 | Maximum Reverse Current@Rated VRM&Tc z大反向漏电流 | Typical Thermal Resistance 典型热阻 | Typical Junction Capacit. 典型结电容 | Operating Temp.Range 工作温度范围 | ||
| VRM(V) | IO(A) | IFSM(A) | Rated lo(A) | VF(V) | IR@25℃(uA) | IR@100℃(uA) | (℃/W) | CJ(PF） | TJ(℃) | ||
| M7 | SMA-L | 1000 | 1 | 30 | 1 | 1 | 2.5 | 50 | 55 | 12 | -55～+125 |
