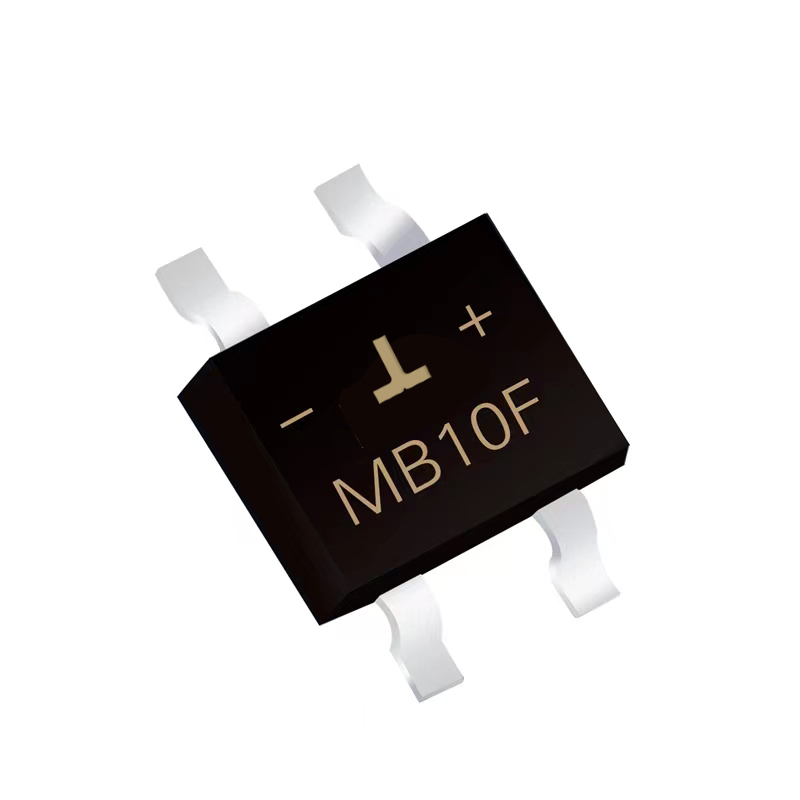

MB10F
产品详情
| Part Number 产品型号 | Package 封装 | Max.Reverse Voltage z大反向电压 | Max.Aver.Rect.Current z大平均整流电流 | Peak Fwd.Surge Curre 正向浪涌电流 | Max.Fwd.Voltage @25℃&Rated lo 正向压降 | Maximum Reverse Current@Rated VRM&Tc z大反向漏电流 | Typical Thermal Resistance 典型热阻 | Operating Temp.Range 工作温度范围 | ||
| VRM(V) | lO(A) | IFSM(A) | Rated lo(A) | VF(V) | IR@25℃(uA) | IR@100℃(uA) | (℃/W) | TJ（℃） | ||
| MB10F | MBF | 1000 | 0.8 | 30 | 0.4 | 1 | 5 | 100 | 76 | -55～+150 |
